Product Summary

Image Products >> Product Log >> Summary
Product Identification
Real User Lisbeth Fogh Olsen
Product Creation Date 02-Nov-2004
Product Creation Time 19:24:58
User eisdata
Session 70206
Process 5000010
Product Type stack
Survey XMM
Telescope MPI-2.2
Instrument WFI
Region XMM-04
Field MS1054.4-0321
Passband R
Total Exposure Time (seconds) 11748
Associated Catalog
Product Type Single Passband Catalog
Product Name N/A
Summary at-a-glance
Instrument WFI
ESO Filter# #844
Right Ascension (hh:mm:ss.s) 10:56:54.9
Declinaton (dd:mm:ss.s) -03:36:51
Number of Contributing Frames 4
Interval between First/Last Contributing Frames (days) 0.95
Airmass 0.0
Final Pixel Scale of Product 0.24
Measured Seeing (arcsec) 0.7
PSF Distortion (rms) 0.07
Astrometry/Reference Grid
Projection TAN
Orientation (default is North up; East left) DEFAULT
Astrometric System GSC2.2
Reference Pixel: X 8149.0
Reference Pixel: Y -1478.0
Photometry
Number of nights with independent zeropoints 2
Zeropoint of Product (Vega magnitudes) 24.434
Zeropoint Error (Zp error) 0.02
.

Attributes

Image Products >> Product Log >> Attributes
Product Identification
Real User Lisbeth Fogh Olsen
Product Creation Date 02-Nov-2004
Product Creation Time 19:24:58
User eisdata
Session 70206
Process 5000010
Product Type stack
Survey XMM
Telescope MPI-2.2
Instrument WFI
Region XMM-04
Field MS1054.4-0321
Passband R
Total Exposure Time (seconds) 11748
General Properties
Right Ascension (decimal degrees) 164.229
Declination (decimal degrees) -3.6144
Galactic Longitude, l 256.5424
Galactic Latitude, b 48.6656
Total Exposure Time (seconds) 11748
Number of Contributing Frames 4
First Contributing Frame MJD 52724.1991
Lsat Contributing Frame MJD 52725.1456
First Contributing Frame Civil Date 2003-03-26
Last Contributing Frame Civil Date 2003-03-27
Interval between First/Last Contributing Frames (days) 0.95
Number of Photometric Contributing Frames 4
Number of Rejected Frames 0
Number of Stacked Frames 4
Effective Gain 26805.7
Effective Non-linearity N/A
Effective Saturation N/A
Area of maximum overlap in stacked image (arcmin2) 1041.7
Fraction of instrument FOV of area of stacked image with maximum overlap 0.9
Aperture Limiting Magnitudes
Aperture (arcsec) 1 sigma 2 sigma 3 sigma 4 sigma 5 sigma
1.0 27.774 27.024 26.584 26.274 26.024
2.0 26.704 25.954 25.514 25.194 24.954
3.0 25.904 25.154 24.714 24.404 24.154
4.0 25.104 24.354 23.914 23.604 23.354
5.0 24.794 24.044 23.604 23.294 23.054
6.0 24.424 23.674 23.234 22.924 22.674

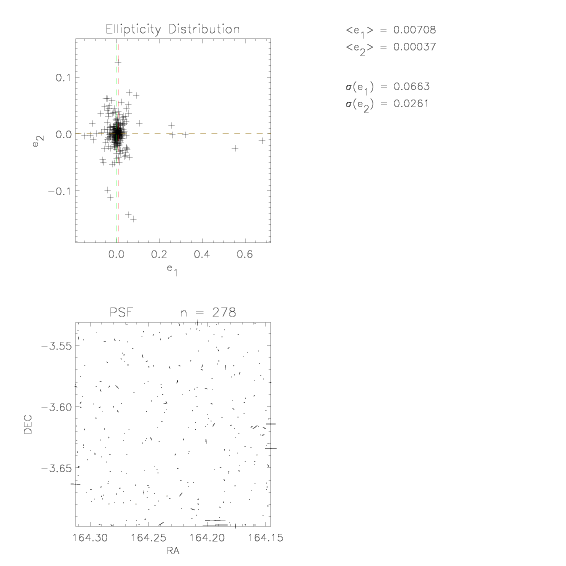

PSF

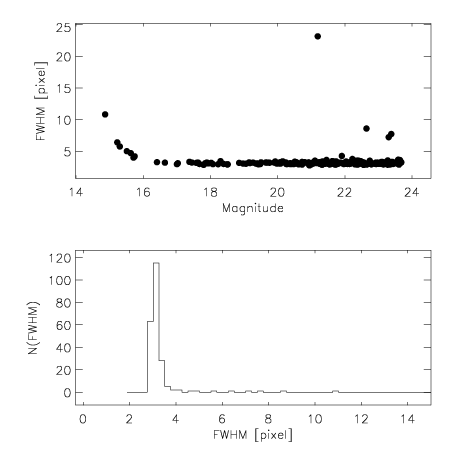

Measured Seeing (arcsec) 0.701
Measured Seeing (pixels) 2.944
PSF Distortion along X-axis (E-W), e1 0.007
PSF Distortion along Y-axis (N-S), e2 0.0
PSF Distortion rms 0.071
Pixel Distribution
Mean Count (ADU) 0.049
Standard Deviation of Count (ADU) 2.048
Mean Sigma-Clipped Background Count (ADU) 0.002
Standard Deviation of Sigma-Clipped Background Count (ADU) 0.015
.

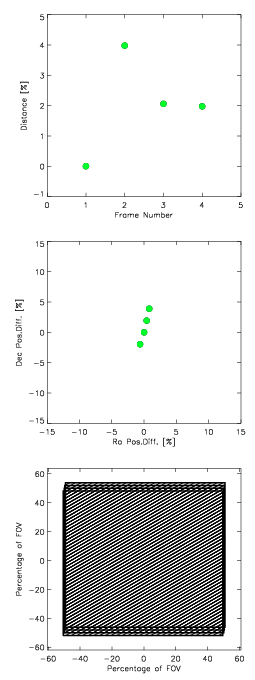

Stack Blocks

Image Products >> Product Log >> Stack Blocks
Product Identification
Real User Lisbeth Fogh Olsen
Product Creation Date 02-Nov-2004
Product Creation Time 19:24:58
User eisdata
Session 70206
Process 5000010
Product Type stack
Survey XMM
Telescope MPI-2.2
Instrument WFI
Region XMM-04
Field MS1054.4-0321
Passband R
Total Exposure Time (seconds) 11748
Stack Blocks (SB)
Number of Original Frames Input 4
Number of Photometric Frames 4
Number of Rejected Frames 0
Number of Stacked Frames 4
Mean Airmass of Contributing Frames 1.24
Mean Seeing of Contributing Frames (arcsec) 0.735
Mean of rms PSF Distortions of Contributing Frames 0.116
Mean Sky Brightness of Contributing Frames (magnitudes/arcsec2) 20.47
Frames in SB: Observations
# R.A. Dec. Passband MJD Civil Date Airmass Total Exposure Time
1 164.228156 -3.61975 R 52724.1991294 2003-03-26 1.24258518417 2999.5875
2 164.232546 -3.59831 R 52724.2416856 2003-03-26 1.48693163088 2999.5872
3 164.224756 -3.63055 R 52725.1016658 2003-03-27 1.11988150085 2999.5842
4 164.230367 -3.60911 R 52725.1456252 2003-03-27 1.1230552915 2749.5855

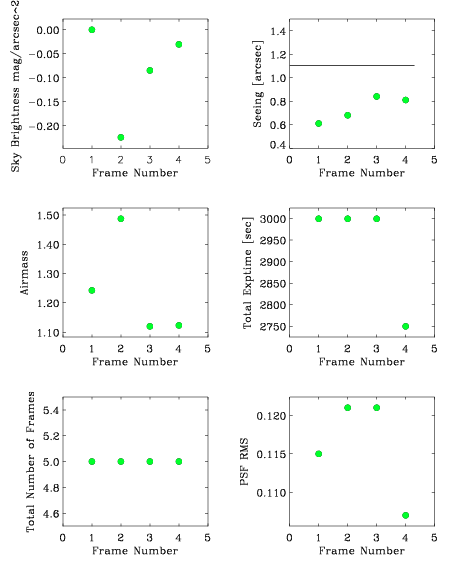

Frames in SB: Properties
# Instrument Filter Pixel Scale NDIT Astrometric System Photometric Flag Visual Flag Automatic Flag
1 WFI #844 0.238 5 GSC2.2 PHOTOM A
2 WFI #844 0.238 5 GSC2.2 PHOTOM A
3 WFI #844 0.238 5 GSC2.2 PHOTOM A
4 WFI #844 0.238 5 GSC2.2 PHOTOM A
Frames in SB: Attributes
# Seeing (arcsec) PSF Distortion (rms) Sky Brightness (magnitudes/arcsec2) Limiting magnitude (5 sigma - 2 arcsec)
1 0.61 0.115 20.45 N/A
2 0.68 0.121 20.2 N/A
3 0.84 0.121 20.32 N/A
4 0.81 0.107 20.37 N/A
Frames in SB: Photometry (Vega)
# MJD. Civil Date Solution Type Zeropoint Zp error Extinction Chi2
1 52723.667 2003-03-25 N/A 24.41 0.004 0.075 0.0385
2 52723.667 2003-03-25 N/A 24.41 0.004 0.075 0.0385
3 52724.667 2003-03-26 N/A 24.46 0.017 0.164 0.0397
4 52724.667 2003-03-26 N/A 24.46 0.017 0.164 0.0397
Frames in SB: Astrometry
# Projection Orientation Astrometric Reference Catalogue Reference Pixel: X Reference Pixel: Y Reference Pointing: Right Ascension Reference Pointing: Declination
1 TAN DEFAULT GSC2.2 8009.0 -1478.0 164.0 -4.0
2 TAN DEFAULT GSC2.2 8061.0 -1517.0 164.0 -4.0
3 TAN DEFAULT GSC2.2 8149.0 -1566.0 164.0 -4.0
4 TAN DEFAULT GSC2.2 8024.0 -1600.0 164.0 -4.0
.

Calibration

Image Products >> Product Log >> Calibration
Product Identification
Real User Lisbeth Fogh Olsen
Product Creation Date 02-Nov-2004
Product Creation Time 19:24:58
User eisdata
Session 70206
Process 5000010
Product Type stack
Survey XMM
Telescope MPI-2.2
Instrument WFI
Region XMM-04
Field MS1054.4-0321
Passband R
Total Exposure Time (seconds) 11748
USNO x GSC2
Catalog Symbol Number of Objects Brightest Magnitude Faintest Magnitude
Night Solutions
# Airmass Zeropoint Zp error Extinction Chi2 Flux Scale
1 1.24 24.41 0.0 0.08 0.039 1.09
2 1.49 24.41 0.0 0.08 0.039 1.11
3 1.12 24.46 0.02 0.16 0.04 1.18
4 1.12 24.46 0.02 0.16 0.04 1.18

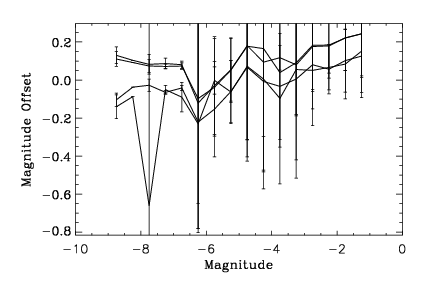

Relative Photometry

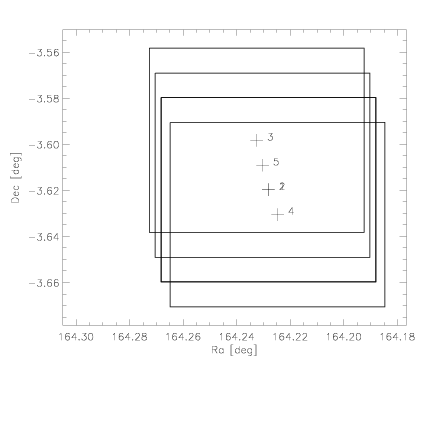

Overlap Information
Number of Fields 1
Number of Overlaps 5
Magnitude differences in overlaps
Overlap ID Fields Number of Objects Magnitude Difference Standard deviation Area
1 1,2 805 0.059 0.113 23.04
2 1,3 599 0.051 0.115 15.94
3 1,4 630 0.165 0.122 19.08
4 1,5 721 0.174 0.121 19.42
Distribution of Magnitude Differences: Tij
Mean Magnitude Difference 0.112
Standard Deviation 0.066
.

Verification

Image Products >> Product Log >> Verification
Product Identification
Real User Lisbeth Fogh Olsen
Product Creation Date 02-Nov-2004
Product Creation Time 23:20:03
User eisdata
Session 70206
Process N/A
Product Type Stack
Survey XMM
Telescope MPI-2.2
Instrument WFI
Region XMM-04
Field MS1054.4-0321
Passband R
Total Exposure Time (seconds) 11748.3444

Comparison

Comparison
Product Identification
Real User Lisbeth Fogh Olsen
Product Creation Date 02-Nov-2004
Product Creation Time 22:56:14
User eisdata
Session 70206
Workflow N/A
Process N/A
Product Type Comparison
Survey XMM
Telescope MPI-2.2
Instrument WFI
Region XMM-04
Field MS1054.4-0321
Passband R
Total Exposure Time (seconds) 11748.3444
.

QC Parameters

Image Products >> Product Log >> Quality Control Parameters (Image QCP)
.
