Product Summary

Image Products >> Product Log >> Summary
Product Identification
Real User Lisbeth Fogh Olsen
Product Creation Date 02-Nov-2004
Product Creation Time 17:11:10
User eisdata
Session 70206
Process 5000010
Product Type stack
Survey XMM
Telescope MPI-2.2
Instrument WFI
Region XMM-03
Field HE1104-1805
Passband R
Total Exposure Time (seconds) 11748
Associated Catalog
Product Type Single Passband Catalog
Product Name N/A
Summary at-a-glance
Instrument WFI
ESO Filter# #844
Right Ascension (hh:mm:ss.s) 11:06:30.6
Declinaton (dd:mm:ss.s) -18:21:23
Number of Contributing Frames 5
Interval between First/Last Contributing Frames (days) 35.9
Airmass 0.0
Final Pixel Scale of Product 0.24
Measured Seeing (arcsec) 0.87
PSF Distortion (rms) 0.07
Astrometry/Reference Grid
Projection TAN
Orientation (default is North up; East left) DEFAULT
Astrometric System GSC2.2
Reference Pixel: X 6274.0
Reference Pixel: Y 9657.0
Photometry
Number of nights with independent zeropoints 3
Zeropoint of Product (Vega magnitudes) 24.38
Zeropoint Error (Zp error) 0.019
.

Attributes

Image Products >> Product Log >> Attributes
Product Identification
Real User Lisbeth Fogh Olsen
Product Creation Date 02-Nov-2004
Product Creation Time 17:11:10
User eisdata
Session 70206
Process 5000010
Product Type stack
Survey XMM
Telescope MPI-2.2
Instrument WFI
Region XMM-03
Field HE1104-1805
Passband R
Total Exposure Time (seconds) 11748
General Properties
Right Ascension (decimal degrees) 166.6275
Declination (decimal degrees) -18.3566
Galactic Longitude, l 270.8227
Galactic Latitude, b 37.8869
Total Exposure Time (seconds) 11748
Number of Contributing Frames 5
First Contributing Frame MJD 52666.2468
Lsat Contributing Frame MJD 52702.1473
First Contributing Frame Civil Date 2003-01-27
Last Contributing Frame Civil Date 2003-03-04
Interval between First/Last Contributing Frames (days) 35.9
Number of Photometric Contributing Frames 5
Number of Rejected Frames 0
Number of Stacked Frames 5
Effective Gain 25476.2
Effective Non-linearity N/A
Effective Saturation N/A
Area of maximum overlap in stacked image (arcmin2) 962.3
Fraction of instrument FOV of area of stacked image with maximum overlap 0.9
Aperture Limiting Magnitudes
Aperture (arcsec) 1 sigma 2 sigma 3 sigma 4 sigma 5 sigma
1.0 27.86 27.11 26.67 26.36 26.12
2.0 26.95 26.2 25.76 25.44 25.2
3.0 26.34 25.59 25.15 24.84 24.6
4.0 25.86 25.11 24.67 24.35 24.11
5.0 25.01 24.25 23.81 23.5 23.26
6.0 24.92 24.17 23.73 23.42 23.18

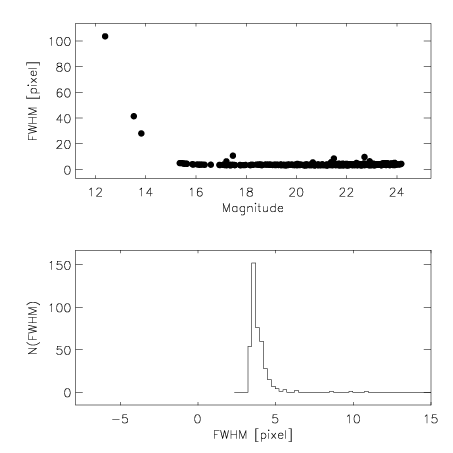

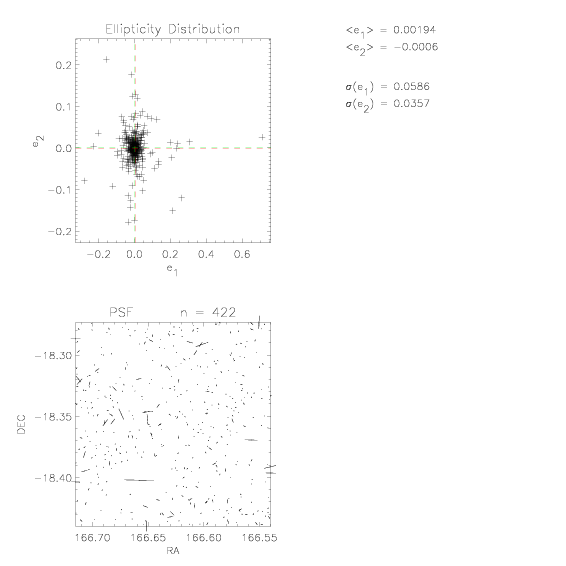

PSF
Measured Seeing (arcsec) 0.866
Measured Seeing (pixels) 3.64
PSF Distortion along X-axis (E-W), e1 0.002
PSF Distortion along Y-axis (N-S), e2 -0.001
PSF Distortion rms 0.069
Pixel Distribution
Mean Count (ADU) 0.048
Standard Deviation of Count (ADU) 1.974
Mean Sigma-Clipped Background Count (ADU) -0.001
Standard Deviation of Sigma-Clipped Background Count (ADU) 0.011
.

Stack Blocks

Image Products >> Product Log >> Stack Blocks
Product Identification
Real User Lisbeth Fogh Olsen
Product Creation Date 02-Nov-2004
Product Creation Time 17:11:10
User eisdata
Session 70206
Process 5000010
Product Type stack
Survey XMM
Telescope MPI-2.2
Instrument WFI
Region XMM-03
Field HE1104-1805
Passband R
Total Exposure Time (seconds) 11748
Stack Blocks (SB)
Number of Original Frames Input 5
Number of Photometric Frames 5
Number of Rejected Frames 0
Number of Stacked Frames 5
Mean Airmass of Contributing Frames 1.04
Mean Seeing of Contributing Frames (arcsec) 0.872
Mean of rms PSF Distortions of Contributing Frames 0.105
Mean Sky Brightness of Contributing Frames (magnitudes/arcsec2) 20.61
Frames in SB: Observations
# R.A. Dec. Passband MJD Civil Date Airmass Total Exposure Time
1 166.613722 -18.35181 R 52666.2468258 2003-01-27 1.05546244281 2399.67
2 166.655477 -18.38242 R 52666.3050278 2003-01-27 1.02078645212 1799.7524
3 166.639472 -18.34476 R 52666.3326958 2003-01-27 1.0412017757 1799.7521
4 166.612035 -18.36267 R 52668.3012272 2003-01-29 1.02856990906 2999.588
5 166.616831 -18.34115 R 52702.1473436 2003-03-04 1.05450406983 2749.5873
Frames in SB: Properties
# Instrument Filter Pixel Scale NDIT Astrometric System Photometric Flag Visual Flag Automatic Flag
1 WFI #844 0.238 4 GSC2.2 PHOTOM A
2 WFI #844 0.238 3 GSC2.2 PHOTOM A
3 WFI #844 0.238 3 GSC2.2 PHOTOM A
4 WFI #844 0.238 5 GSC2.2 PHOTOM A
5 WFI #844 0.238 5 GSC2.2 PHOTOM A

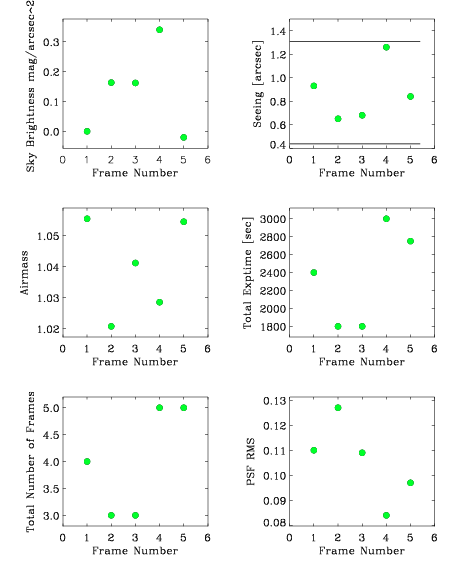

Frames in SB: Attributes
# Seeing (arcsec) PSF Distortion (rms) Sky Brightness (magnitudes/arcsec2) Limiting magnitude (5 sigma - 2 arcsec)
1 0.93 0.11 20.4 N/A
2 0.65 0.127 20.57 N/A
3 0.68 0.109 20.57 N/A
4 1.26 0.084 20.74 N/A
5 0.84 0.097 20.37 N/A
Frames in SB: Photometry (Vega)
# MJD. Civil Date Solution Type Zeropoint Zp error Extinction Chi2
1 52665.625 2003-01-26 N/A 24.38 0.047 0.079 0.0469
2 52665.625 2003-01-26 N/A 24.38 0.047 0.079 0.0469
3 52665.625 2003-01-26 N/A 24.38 0.047 0.079 0.0469
4 52667.625 2003-01-28 N/A 24.38 0.044 0.088 0.0437
5 52701.625 2003-03-03 N/A 24.38 0.004 0.092 0.0317

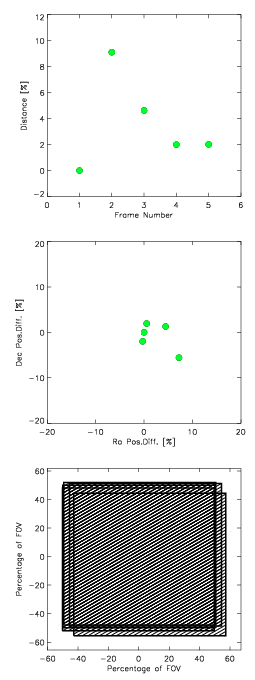

Frames in SB: Astrometry
# Projection Orientation Astrometric Reference Catalogue Reference Pixel: X Reference Pixel: Y Reference Pointing: Right Ascension Reference Pointing: Declination
1 TAN DEFAULT GSC2.2 6190.0 9422.0 166.5 -18.0
2 TAN DEFAULT GSC2.2 6213.0 9657.0 166.5 -18.0
3 TAN DEFAULT GSC2.2 6274.0 9616.0 166.5 -18.0
4 TAN DEFAULT GSC2.2 6233.0 9589.0 166.5 -18.0
5 TAN DEFAULT GSC2.2 6233.0 9474.0 166.5 -18.0
.

Calibration

Image Products >> Product Log >> Calibration
Product Identification
Real User Lisbeth Fogh Olsen
Product Creation Date 02-Nov-2004
Product Creation Time 17:11:10
User eisdata
Session 70206
Process 5000010
Product Type stack
Survey XMM
Telescope MPI-2.2
Instrument WFI
Region XMM-03
Field HE1104-1805
Passband R
Total Exposure Time (seconds) 11748
USNO x GSC2
Catalog Symbol Number of Objects Brightest Magnitude Faintest Magnitude
Night Solutions
# Airmass Zeropoint Zp error Extinction Chi2 Flux Scale
1 1.06 24.38 0.05 0.08 0.047 1.08
2 1.02 24.38 0.05 0.08 0.047 1.08
3 1.04 24.38 0.05 0.08 0.047 1.08
4 1.03 24.38 0.04 0.09 0.044 1.09
5 1.05 24.38 0.0 0.09 0.032 1.09

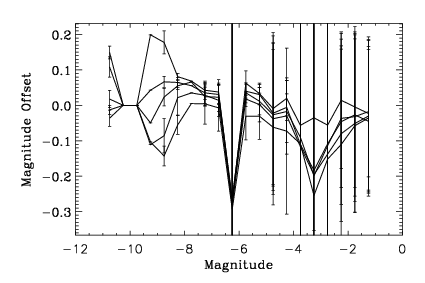

Relative Photometry

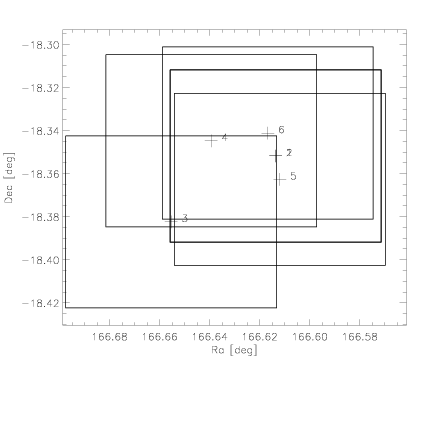

Overlap Information
Number of Fields 1
Number of Overlaps 6
Magnitude differences in overlaps
Overlap ID Fields Number of Objects Magnitude Difference Standard deviation Area
1 1,2 698 0.002 0.085 23.04
2 1,3 668 -0.025 0.105 7.18
3 1,4 739 -0.01 0.108 14.59
4 1,5 764 0.025 0.104 19.51
5 1,6 793 0.01 0.109 19.23

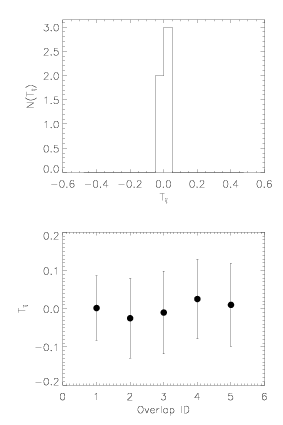

Distribution of Magnitude Differences: Tij
Mean Magnitude Difference 0.0
Standard Deviation 0.019
.

Verification

Image Products >> Product Log >> Verification
Product Identification
Real User Lisbeth Fogh Olsen
Product Creation Date 02-Nov-2004
Product Creation Time 23:09:17
User eisdata
Session 70206
Process N/A
Product Type Stack
Survey XMM
Telescope MPI-2.2
Instrument WFI
Region XMM-03
Field HE1104-1805
Passband R
Total Exposure Time (seconds) 11748.3498

Comparison

Comparison
Product Identification
Real User Lisbeth Fogh Olsen
Product Creation Date 02-Nov-2004
Product Creation Time 22:48:54
User eisdata
Session 70206
Workflow N/A
Process N/A
Product Type Comparison
Survey XMM
Telescope MPI-2.2
Instrument WFI
Region XMM-03
Field HE1104-1805
Passband R
Total Exposure Time (seconds) 11748.3498
.

QC Parameters

Image Products >> Product Log >> Quality Control Parameters (Image QCP)
.
